High-Purity Silver Recovery and Electrolytic Refining Process for Silver-Containing Waste Residue
Keywords: silver waste recovery; silver chemical purification; silver ammonia complexation; hydrazine reduction; silver electrolytic refining; precious metal recycling
Silver recycling and purification from industrial silver waste is a key process in the precious metal beneficiation industry. It regenerates valuable resources, cuts industrial waste emissions, and boosts the comprehensive utilization rate of precious metal materials. Zhengzhou Jinquan Mining Equipment Co., Ltd. focuses on developing and optimizing complete silver recovery and refining production lines. In this article, we introduce a reliable, full-scale technical process for silver processing. The workflow covers silver dissolution, precipitation, complexation, reduction, roasting, and electrolytic purification for silver waste residue and sediment from workshop cleaning wastewater.
1. Silver Dissolution Process by Nitric Acid Leaching
This silver recovery process uses three main raw materials. They include industrial silver powder, waste residue from silver nitrate production, and khaki silver-rich sediment from workshop wastewater sedimentation tanks. We use 10 kilograms of mixed silver-containing waste for the entire processing test.
We add excessive 50% dilute nitric acid (by mass fraction) to the raw materials for full leaching. This step dissolves all solid silver components in the waste materials. It also transfers silver elements into liquid silver nitrate solution. As a result, workers separate silver from solid impurities efficiently. The chemical reaction for silver acid dissolution is as follows:
$$3Ag + 4HNO_3 \rightarrow 3AgNO_3 + NO\uparrow + 2H_2O$$
2. Silver Ion Precipitation and Filtration Process
First, we filter the mixed solution after acid dissolution. This step removes all insoluble solid impurities from the liquid. Next, we add excessive sodium chloride (NaCl) solid to the purified filtrate. The powder fully reacts with free silver ions in the solution.
Silver ions bind with chloride ions and form stable silver chloride precipitate. This method effectively concentrates silver elements inside the solid sediment. Once silver ions fully precipitate, we filter and rinse the mixture with clean water. Finally, we collect AgCl filter residue for further high-purity purification. The precipitation chemical reaction is as follows:
$$Ag^+ + Cl^- \rightarrow AgCl\downarrow$$
3. Silver Chloride Ammonia Complexation Process
Trace impurities often wrap inside silver chloride precipitate. For this reason, we add 1000 mL of high-concentration ammonia water to the filter residue. The ammonia water has a mass fraction between 25.0% and 28.0%. It completely dissolves and complexes solid AgCl under alkaline conditions.
In this step, insoluble silver chloride turns into soluble silver ammonia complex (Ag(NH₃)₂Cl). Meanwhile, most solid impurities stay in the undissolved phase. This change greatly improves the purity of the silver-bearing liquid. The complexation chemical reaction is shown below:
$$AgCl + 2NH_3 \cdot H_2O \rightarrow Ag(NH_3)_2Cl + 2H_2O$$
4. Hydrazine Reduction, Washing and Drying Process
We use 1000 mL of 80% hydrazine hydrate solution as the reducing agent. Workers add the solution to the silver ammonia complex liquid. Under stable alkaline environments, the agent fully reduces the complex into pure elemental silver solid.
After the reduction process finishes, we filter the mixture. We then rinse the solid repeatedly with deionized water. We stop washing once the eluate conductivity drops below 50 S·m⁻¹. This practice removes residual salts and chemical agents thoroughly. Lastly, we mechanically squeeze the silver residue to drain excess water.
Professional component tests confirm the treated filter residue has a silver content of 67.35%. We first place the residue in a graphite crucible for complete drying. After drying, we transfer the material to a medium-frequency furnace for high-temperature ashing. We maintain a constant roasting temperature of 1000°C. This high heat oxidizes and volatilizes organic and inorganic impurities. It also achieves primary purification for crude silver products.
5. High-Purity Silver Electrolytic Refining Process
High-temperature roasting and ashing produce molten crude silver slurry. We pour the slurry into a dedicated anode mold and cool it down. The finished crude silver anode plate has a silver purity of 95.8%. However, it still contains minor impurities. Thus, we apply professional electrolytic refining to achieve deep purification and higher silver purity.

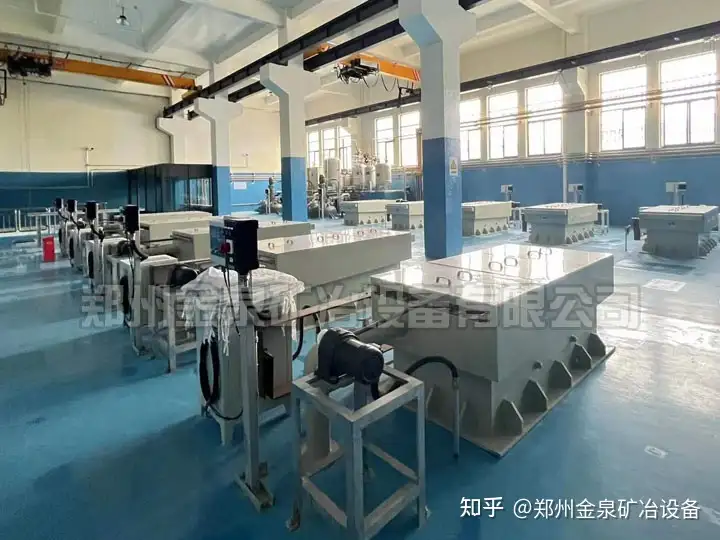

The electrolytic system adopts a standard and stable configuration. Workers use the crude silver plate as the electrolytic anode. They also install a stainless steel plate as the cathode. The electrolyte is a mixed solution of silver nitrate, nitric acid, and potassium nitrate. Furthermore, we add moderate nitric acid and potassium nitrate. These additives adjust solution pH and boost electrical conductivity. In turn, they support stable and efficient electrolytic reactions.
During electrolytic refining, silver ions separate from the crude anode plate and dissolve evenly into the electrolyte. They then selectively deposit on the stainless steel cathode. On the contrary, metallic and non-metallic impurities remain in anode mud or raw electrolyte. Finally, this precise separation process produces high-purity metallic silver.
Process Advantages of Jinquan Mining’s Silver Purification Technology
1. High Recovery Rate: This process combines acid leaching, complexation reduction and electrolytic refining. It recovers silver fully from low-grade silver waste residue and raises overall resource utilization efficiency.
2. Stable Purification Effect: The step-by-step impurity removal mode eliminates complex impurities layer by layer. It delivers stable purity upgrades from crude silver to high-quality refined silver.
3. Industrial and Scalable: The full workflow features simple and controllable operation. It supports automatic production and fits large-scale recycling for all types of industrial silver waste materials.
4. Cost-Effective & Eco-Friendly: The process uses standard high-efficiency reagents and physical purification equipment. It lowers production costs and keeps waste discharge within safe limits. It fully complies with global industrial environmental standards.
Conclusion
This integrated silver recovery and refining process solves the low-efficiency utilization issue of industrial silver waste. It uses standardized dissolution, precipitation, complexation, roasting and electrolytic steps. Therefore, it achieves efficient recycling and high-purity production of silver resources. As a trusted manufacturer of mining and precious metal processing equipment, Zhengzhou Jinquan Mining Equipment Co., Ltd. offers customized silver recycling production lines. We also provide process optimization and supporting equipment for global clients. Our team focuses on delivering efficient, energy-saving and eco-friendly beneficiation solutions for precious metals.
