50-kilogram silver electrolysis unit

Product Description

50-kilogram silver electrolysis unit

Free Contact

The company's main business: silver electrolysis unit, gold electrolysis unit, nitrogen oxide waste gas treatment system equipment, platinum, palladium and rhodium refining and purification production and other common equipment

Silver Electrolysis Refining Unit | 99.99% High-Purity Silver Electrorefining Equipment

Product Overview

The silver electrolysis refining unit is a dedicated electrorefining device for silver purification. By adopting mature electrochemical technology, it can steadily refine crude silver (silver content ≥97%) into 99.99% ultra-high-purity electrolytic silver. Specifically, crude silver plates work as soluble anodes, titanium plates as inert cathodes, and silver nitrate solution as circulating electrolyte. When connected to DC power, crude silver dissolves from the anode, and pure silver deposits on the cathode, thus achieving efficient silver purification.

Core Advantages

This electrolysis unit stands out from conventional refining equipment with the following comprehensive strengths:

Stable Working Current: It supports a standard cathode current density of 750A/m², which balances high refining efficiency and long-term operational stability.
Leak-Proof Integral Electrolytic Cell: The one-piece molded electrolytic tank has no splicing seams, which thoroughly solves electrolyte leakage issues and cuts daily maintenance costs.
Intelligent Electrolyte Temperature Control: Equipped with a professional cooling system to stabilize electrolyte temperature. Meanwhile, it reduces electrolyte volatilization and lowers acid consumption effectively.
Guaranteed High Purity Output: With optimized electrolysis parameters, the finished electrolytic silver powder can stably reach 99.99% purity or higher, meeting global industrial high-purity silver standards.

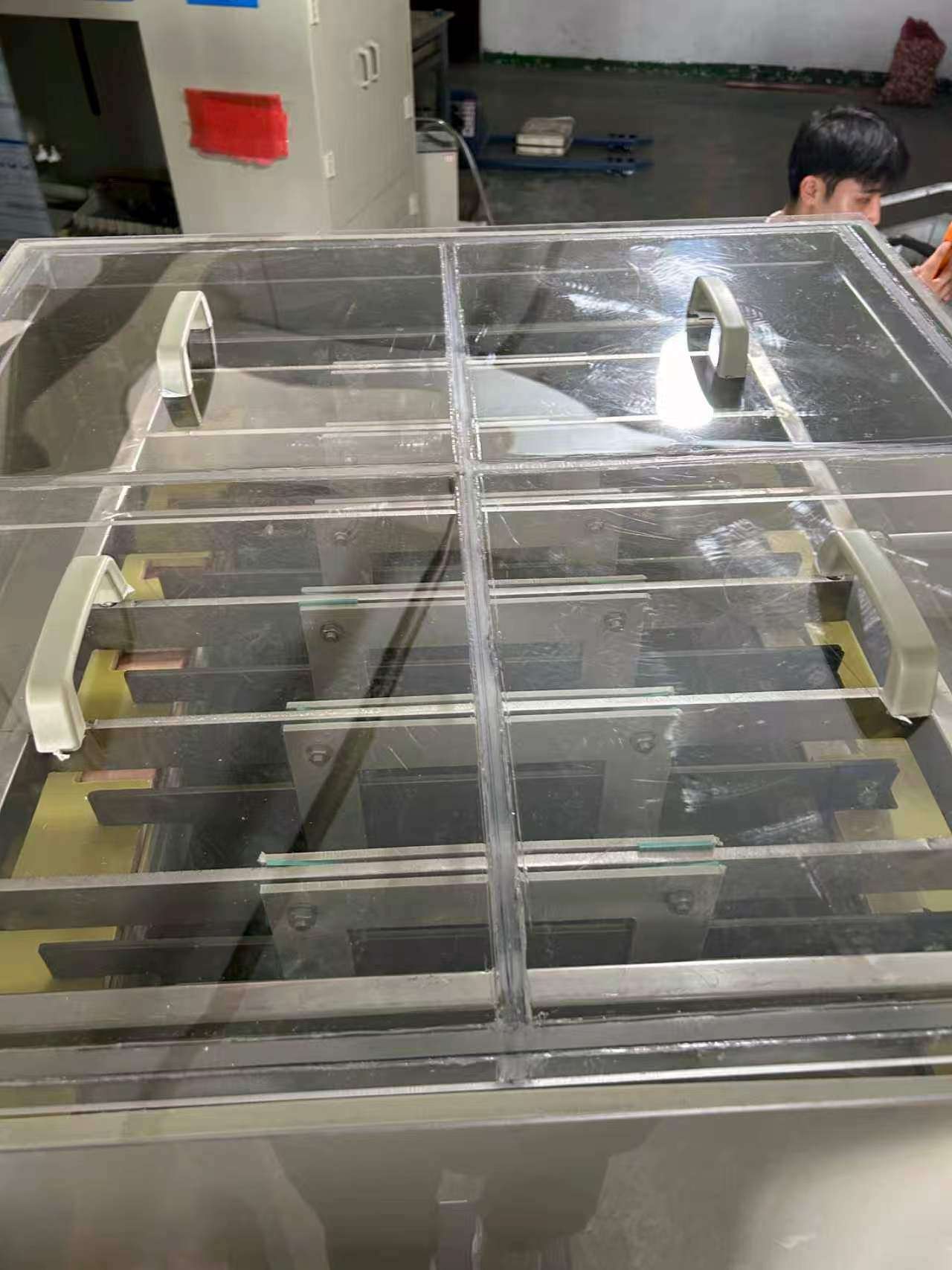

Eco-Friendly Workshop Ventilation Design: Featured with a transparent fully enclosed smoke cover and side air exhaust structure. It effectively isolates corrosive acid fume to create a safe and clean working environment.
Silver Loss Reduction System: Equipped with an independent flue gas condensation system to recycle silver-containing exhaust gas, which minimizes precious metal loss and improves overall silver yield.
Durable Corrosion-Resistant Structure: For one thing, the equipment main body adopts anti-aging modified high-performance PP for prolonged service life. For another, the integral frame is made of corrosion-resistant PPH material. Besides, titanium-clad copper anode and cathode strips ensure excellent conductive performance.

Applicable Scenarios

It is widely applicable for precious metal smelters, silver recycling plants, non-ferrous metal enterprises and mineral processing factories for batch crude silver refining.
