Product Description
High performance independent tank silver refiner ion exchange water electrolyzer

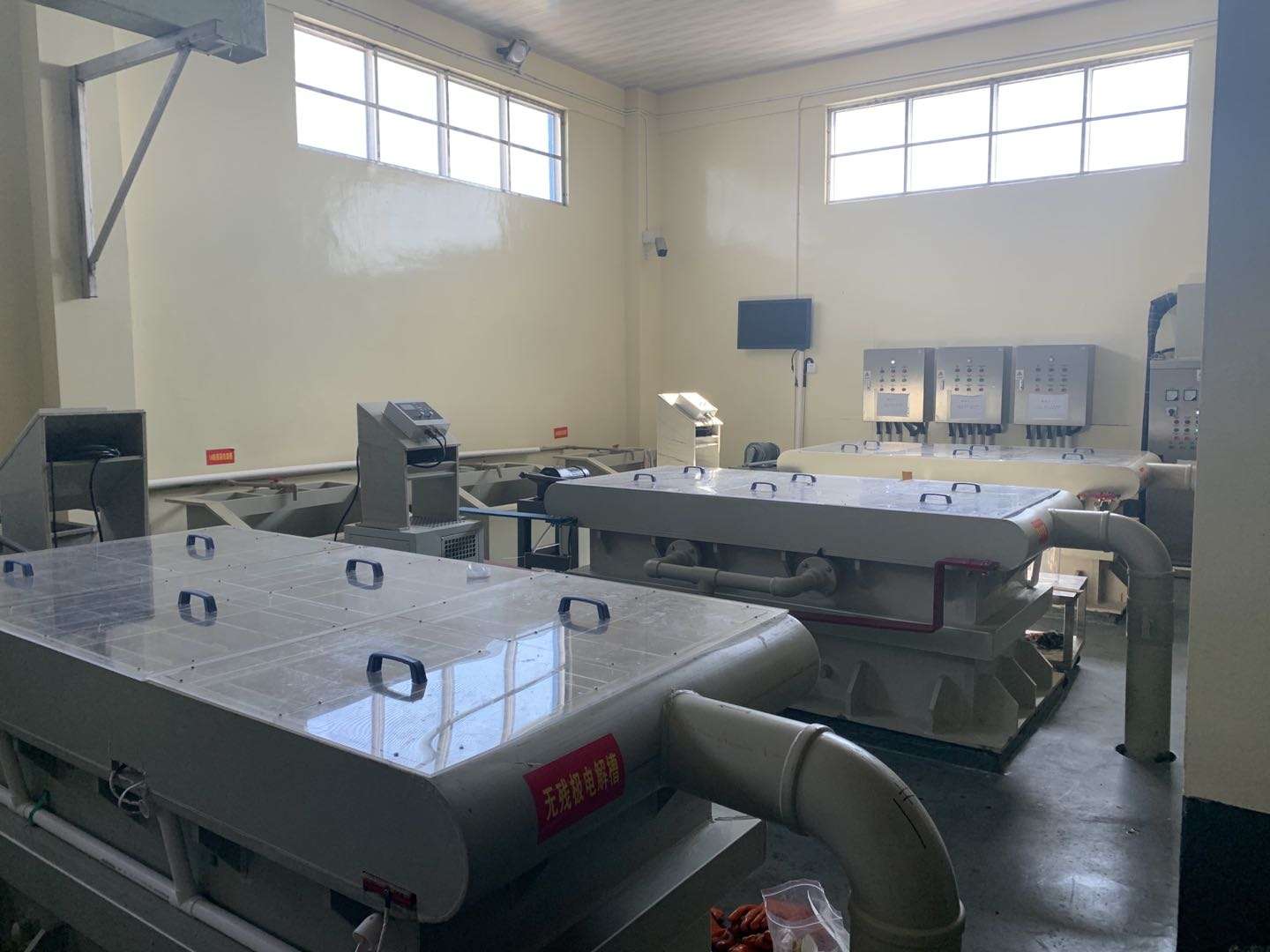

Aqueous Electrolytic Cell
The automatic loading and unloading system of anode plate can complete the whole loading process in only 2 minutes. It is highly integrated with the electrolytic cell and operated by one hand remote control. The anode is accurately positioned through the positioning card, and the polar distance error is less than 0.1mm. Anode titanium copper silver composite conductive rod and anode silver clad welded titanium plate have high electrical efficiency and good conductivity. Silver electrolysis data control center can detect the voltage, cell current and electrolyte temperature in real time, understand the electrolysis status of each cell, and find problems at any time.
| model | Customizable |
| product name | Silver extractor |
| purpose | Recovery of precious metal wastewater |
| Applicable Industries | Gold and silver jewelry manufacturing |
| Product use | Recovery of precious metal wastewater |
| Specifications | 85*65*56 |
| production capacity | 10kg/15kg (24 hour) |
| Working principle | Put the old 925 silver jewelry into four titanium baskets, and then add 10% nitric acid solution to the machine. During the operation of the machine, the silver will be dissolved in dilute nitric acid solution, and then the silver in the solution will be electrolytic reduced by electrolyte and adsorbed on the rotating anode titanium barrel again, and finally obtain silver with purity of 9999 or 99999 |
