Platinum Group Metals Recycling from Vehicle Catalysts

I. Systematic Comparison of PGM Recovery Technologies

The global recycling of platinum group metals (PGMs) from end-of-life automotive catalysts presents multifaceted challenges. To evaluate competing technologies objectively, we must analyze six critical dimensions:

First, regarding recovery efficiency, pyrometallurgical methods consistently achieve 95-98% yields, whereas conventional hydrometallurgical approaches rarely exceed 85%. Second, operational expenditure analysis reveals that while smelting requires higher initial energy input, its long-term costs prove 30-40% lower than chemical processes due to reduced reagent consumption.

Notably, environmental considerations increasingly favor smelting technologies. Although both methods generate secondary waste, modern smelting plants now meet ISO 14001 standards through advanced gas cleaning systems, in contrast to persistent wastewater treatment challenges in hydrometallurgy.

Regarding industrial implementation, the scalability advantage becomes apparent:

• Smelting facilities process 50-100 tons/day

• Chemical plants typically handle <10 tons/day

Consequently, 92% of operational PGM recovery capacity currently utilizes smelting technologies, with plasma-assisted methods gaining market share for high-value applications.

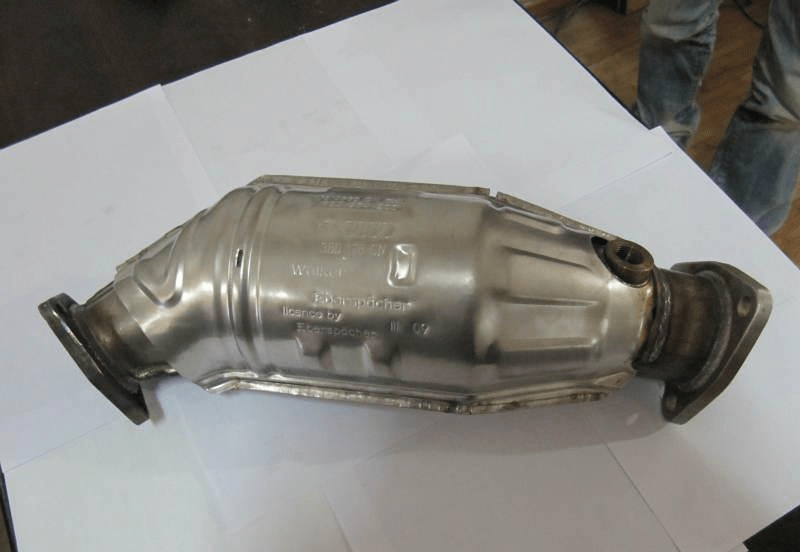

II. Evolution and Challenges in Spent Catalyst Composition

To understand contemporary recovery challenges, we must examine the materials revolution in catalyst design. Initially, spherical γ-Al₂O₃ carriers dominated the market, but modern units employ radically different architectures:

On one hand, ceramic cordierite substrates (2MgO·2Al₂O₃·5SiO₂) provide thermal stability while metallic carriers offer mechanical robustness. On the other hand, both designs incorporate critical innovations:

1. Micro-porous γ-Al₂O₃ washcoats (20-50μm)

2. Nano-scale PGM dispersion (<1μm particles)

However, these advancements create recovery obstacles:

• While cordierite resists acid attack, it traps migrating PGMs

• Although PGM loading reaches 1500g/t in three-way catalysts, the metals form refractory compounds

Therefore, effective recovery requires overcoming:
✓ Thermal stability issues (melting points >1300°C)
✓ Chemical passivation (oxide/sulfide formation)
✓ Physical encapsulation (glass phase formation)

III. Modern Processing Flows: From Concentration to Refining

Transitioning from theory to practice, industrial operations follow three defined stages:

1. Concentration Phase
Whereas small-scale operators may use acid leaching, most large facilities employ:

• Induction smelting (60% of capacity)

• Plasma arc furnaces (25%)

• Copper collector processes (15%)

For example, Outotec's flash smelting achieves 98% PGM capture while reducing energy use by 40% versus traditional methods.

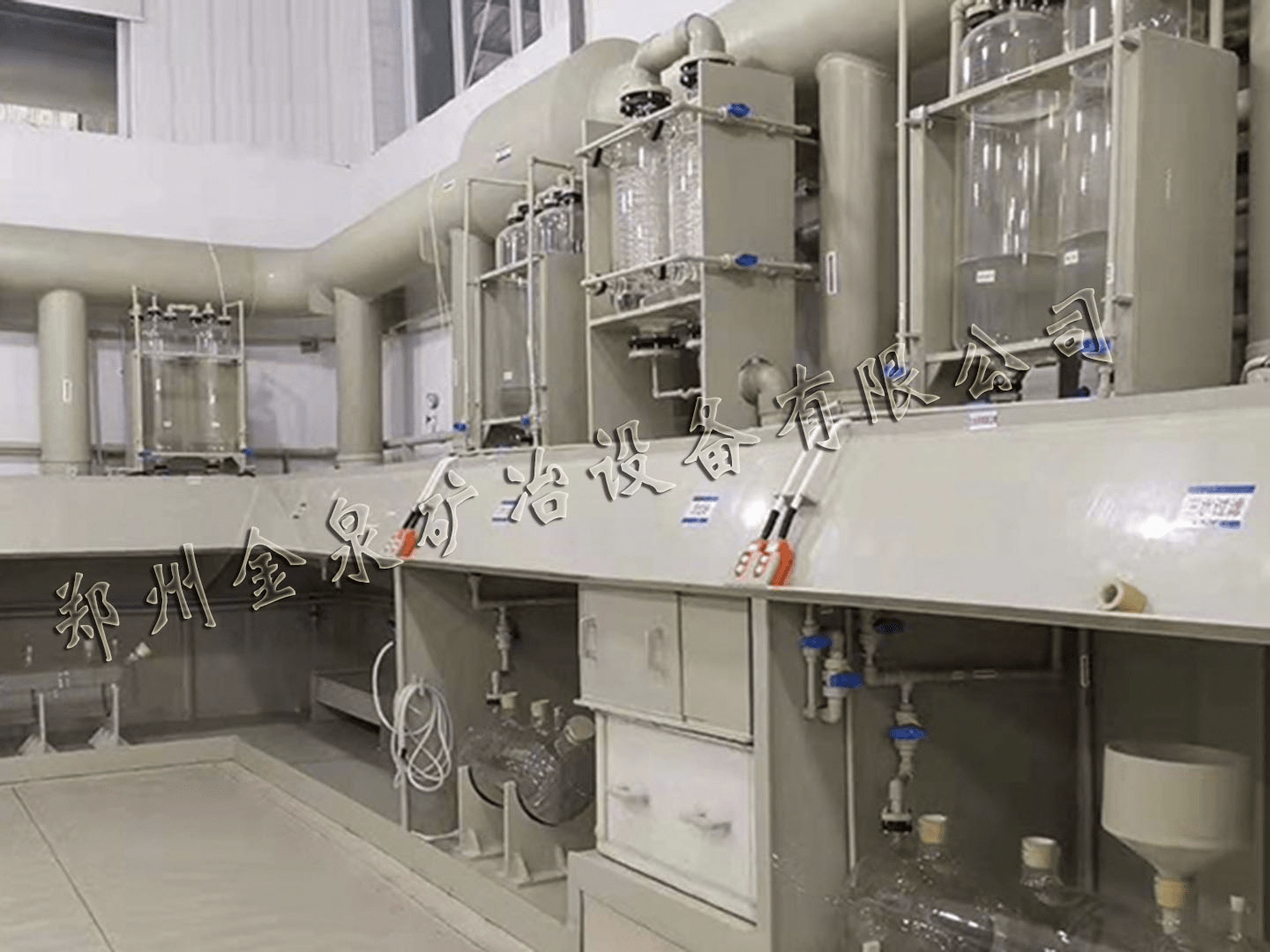

2. Separation Stage
After obtaining PGM-rich intermediates, plants apply:

• First, selective chlorination to separate Pt from Pd

• Next, ammonium salt precipitation for Rh recovery

• Finally, ion exchange for residual metal capture

3. Final Refining
Ultimately, electrolytic refining produces:

• 99.99% pure Pt cathodes

• 99.95% Pd sponge

• 99.9% Rh powder

Conclusion: The Path Forward
While technical alternatives exist, smelting remains the cornerstone of PGM recovery because of its unmatched combination of efficiency, scalability, and environmental performance. Looking ahead, the integration of AI-driven process control and hydrogen-based smelting reduction promises to further elevate recovery rates beyond 99% while minimizing carbon footprint.
